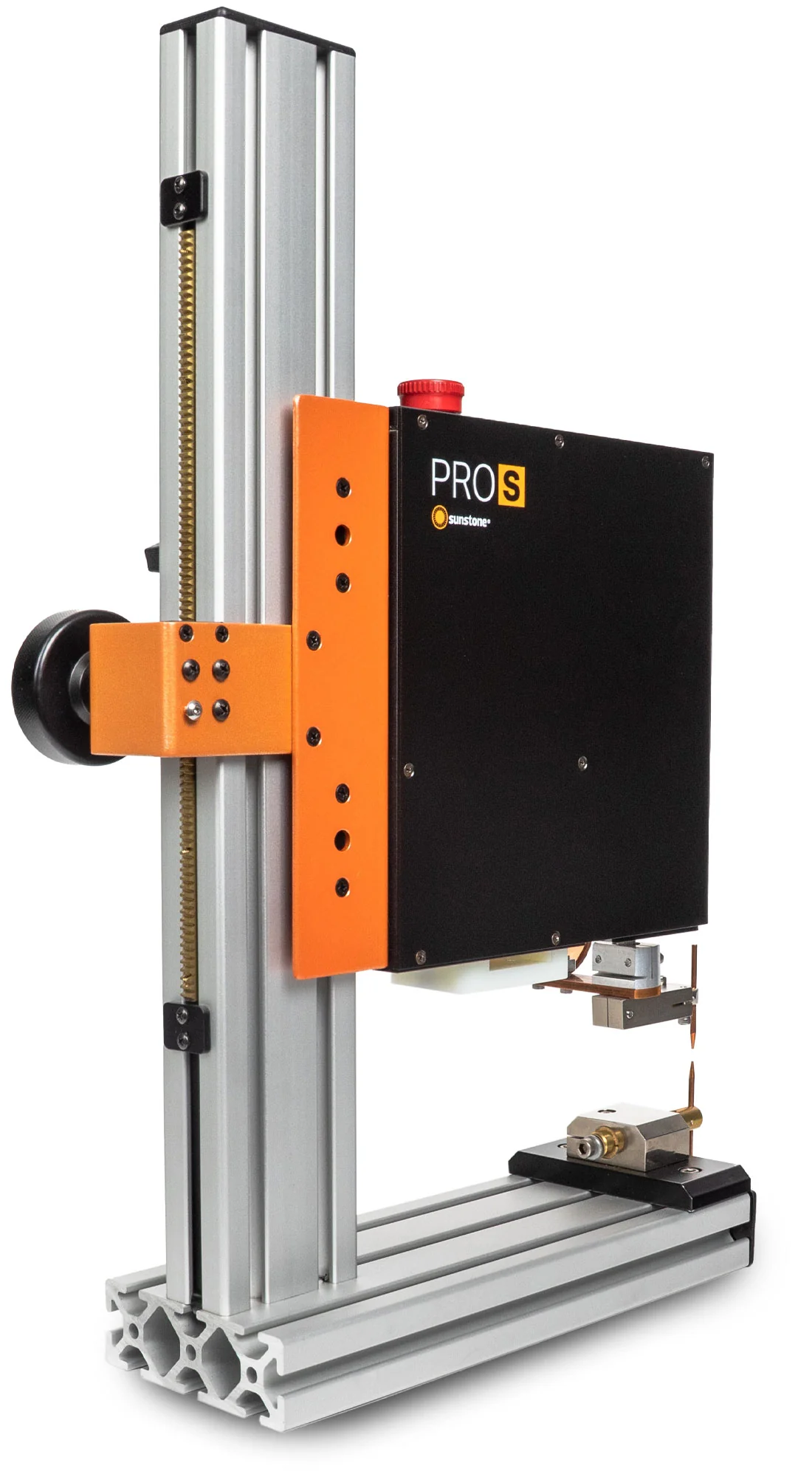

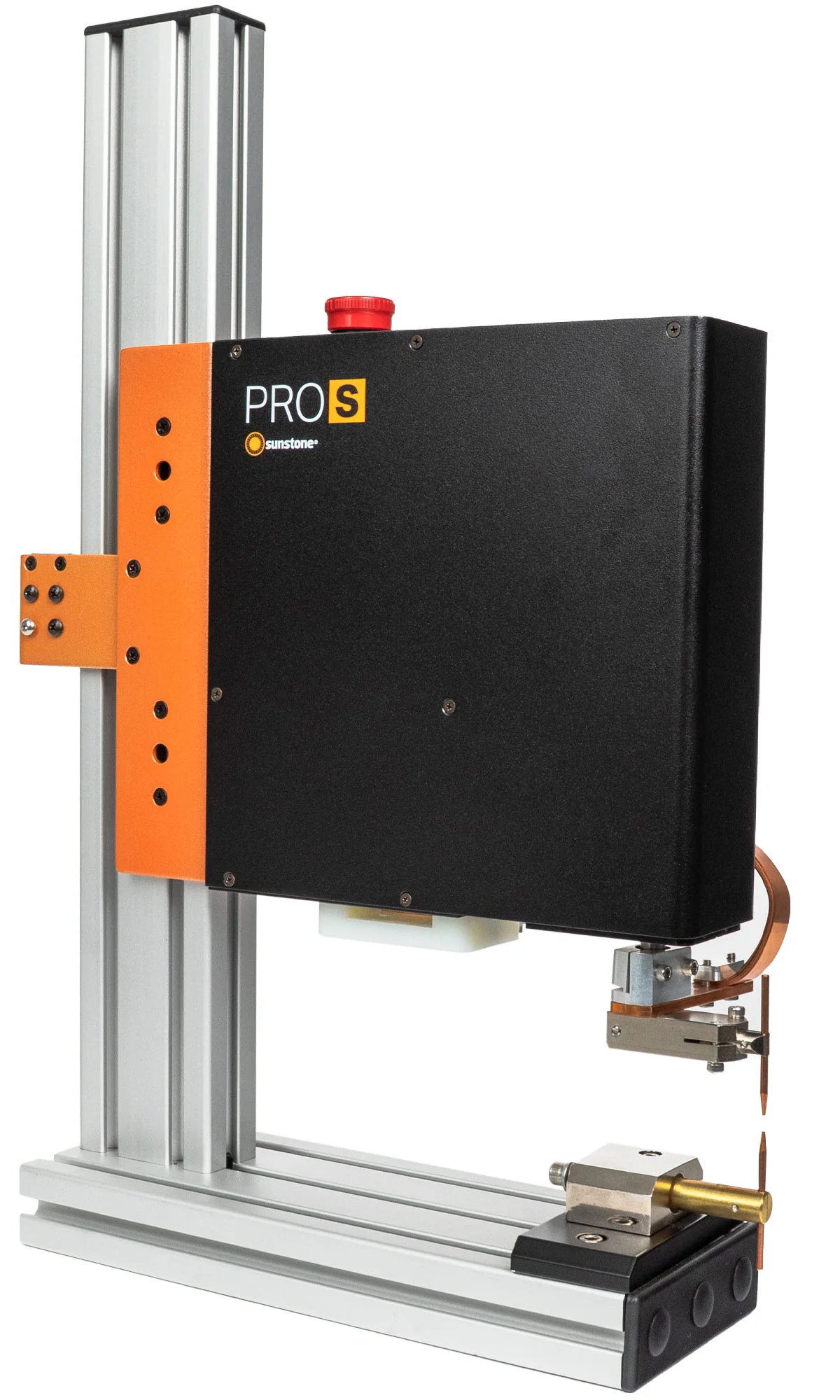

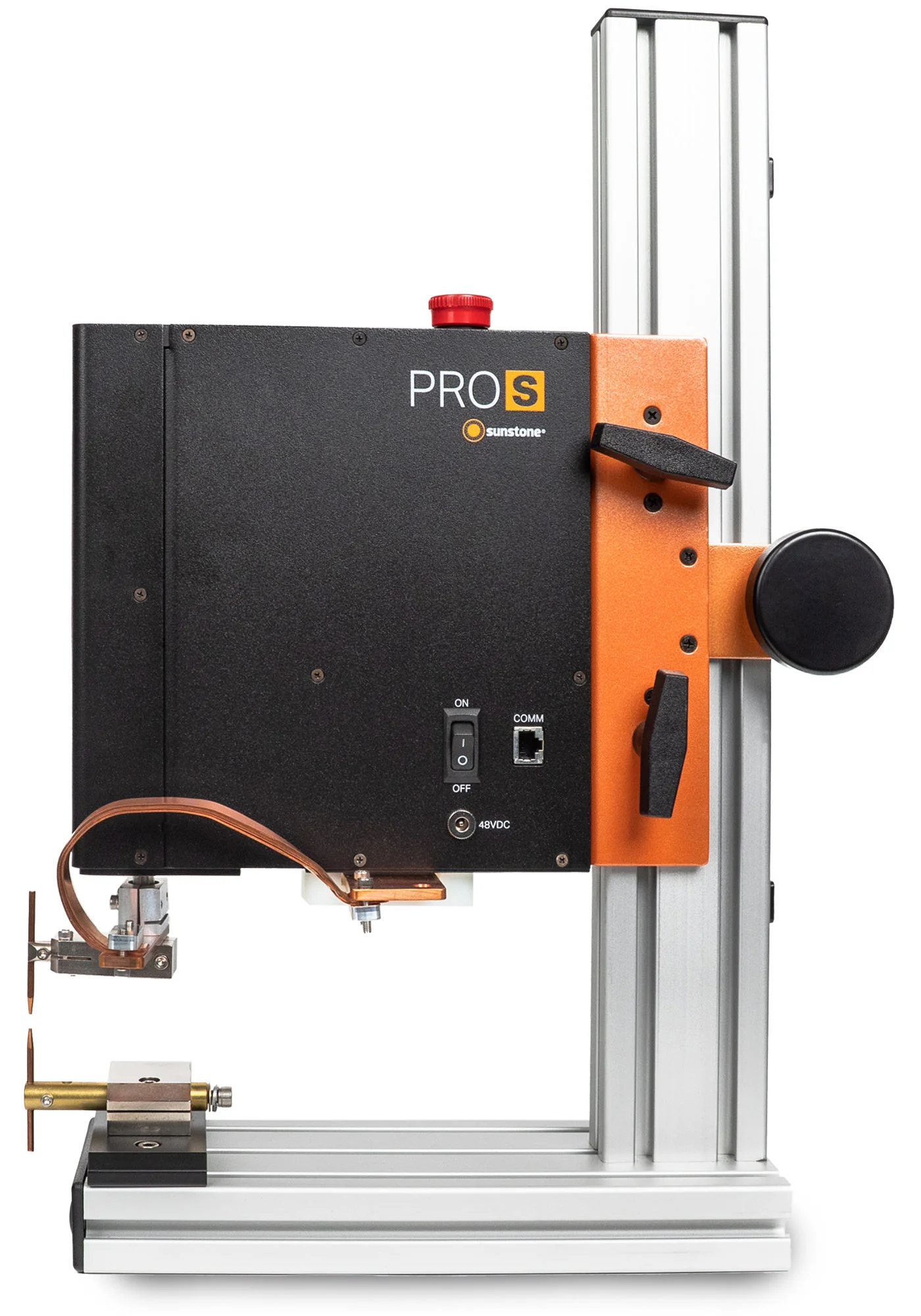

The Sunstone Pro-S is a servo-powered weld head that provides high-end features at a mid-range price. Available in an opposed configuration, the Pro-S provides quality welding results for automated, high-production environments or as a tabletop solution for smaller shops. Built-in monitoring comes standard with the Pro-S. Any manufacturer that utilizes resistance welding in their manufacturing process will see immediate efficiency gains with the Pro-S.

Key Features

• Force Feedback Monitoring
• Displacement Feedback
• Pull Positional Monitoring
• Faster Operational Speed
• Increased Precision vs Pneumatic-Powered Weld Heads
• Adjustable Weld Head Force between 1.8 to 29.2 lbs (8 to 130 N)
• Positional displacement accuracy of 60 µm
• 2” stroke (50 mm)
• Automation-Ready
• Rotary Knob Height Adjustment
• Multiple Electrode Configuration Possibilities
• Optional Foot Pedal Control

Application Ideas

• Cross wires
• Battery Tabs
• Medical
• Strap Welds
• Strain gauges
• Electronic components
• Foil welds
• Sheet Welds
• R&D Work

Product Specifications

Tabletop Footprint (L x W x H)	14 x 5 x 24 in
Weight	22 lbs (10 kg)
Weld Force	1.8 to 29.2 lbs (8 to 130 N)
Max Electrode Stroke	2" (50 mm)
Electrode Diameter	1/8 in
Power Input	48 VDC @ 1.87 A
Max Throat Size (H x D)	9 x 10 in
Weld Cable Size/Length	0 AWG / 24 in
Foot Pedal Type	Analog/Digital
Duty Cycle	100%
Electrode Speed	Home to Hover Point: 3–20 mm/sec
Operating Temperature	0 to 65°
Positional Displacement Accuracy	60 µm
Actuation Method	Automatic or Direct
