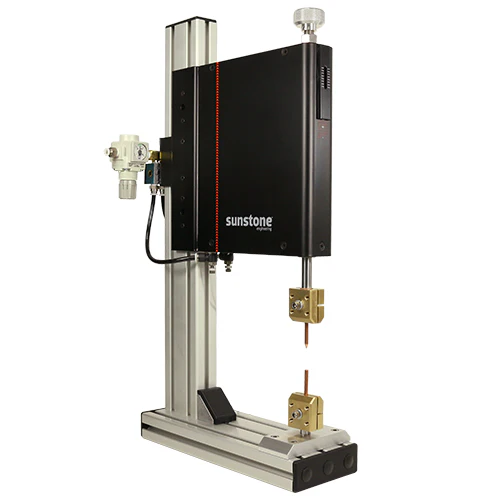

The Sunstone High Force Opposed Weld Head

The pneumatic cylinder is compatible with any air compressor that can deliver 60psi or more, and includes a pressure regulator for fine tuning. The travel speed of the vertical motion can be adjusted using the included flow control valves. An adjustable magnetic reed switch can automatically trigger a weld once the head moves into the desired position; or users may choose to trigger the weld manually using the included secondary foot pedal that attaches to the back of the welding power supply.

High Force Weld Head Features:

• Robust design provides precision and repeatability
• Fine control of weld pressure from 1.7 to 45 lbf
• Pneumatic air actuated
• Low electrode inertia for fast follow-on pressure

High Force Weld Head Applications:

• These high force weld heads are well suited for pinch-type welding applications

*** Weld Heads Do not include electrodes, as there are many electrode options. Please check out our electrode selection guide for more information on the electrode type that you need. ***

High Force Opposed Weld Head
